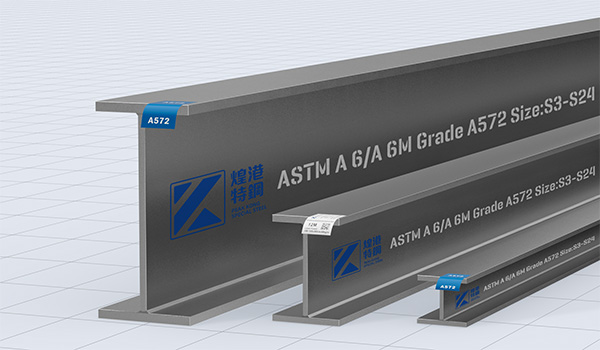

美國標準工字鋼
  • 標準: ASTM A 6/A 6M
  • 工藝: ISO 15614-11 、ISO 15614-14
  • 工藝: ASTM 1069、EN13919
  • 鋼級: A36、A709/A709M、A572、Gr50、Gr65、Gr80、A992、Gr50、Gr65、Gr80
  • 公差: 符合ASTM A635 和 A568
  • 證書: 根據ASTM A36/A105
美國標準工字鋼公差
類別 公差
厚度 (H) 高度300或以下:±2.0mm
超過300:±3.0mm
寬度 (B) ±2.0mm
垂直度 (T) 寬度的 1.2% 或更少 (B)
請注意,最小公差為 2.0 毫米
中心偏移 (C) ±2.0mm
彎曲 長度的 0.20% 或更少
腿長 (S) [腹板厚度(t1 )×0.7]以上
長度 3至12米
長度公差 +40mm,-0mm
煌港特鋼公差
美國標準工字鋼規格
規格 工艺 重量 kg/m 高 h /mm 底寬 b /mm 腰厚 s /mm 腿厚 t /mm 內弧半徑 r /mm
W 100 x 100 x 19.3激光19.31061037.18.86
W 130 x 130 x 23.8激光23.81271276.19.18
W 130 x 130 x 28.1激光28.11311286.910.98
W 150 x 100 x 13.5激光13.51501004.35.56
W 150 x 100 x 18.0激光18.01531025.87.16
W 150 x 100 x 24.0激光24.01601026.610.36
W 150 x 150 x 22.5激光22.51521525.86.66
W 150 x 150 x 29.8激光29.81571536.69.36
W 150 x 150 x 37.1激光37.11621548.111.66
W 200 x 100 x 15.0激光15.02001004.35.28
W 200 x 100 x 19.3激光19.32031025.86.58
W 200 x 100 x 22.5激光22.52061026.288
W 200 x 135 x 26.6激光26.62071335.88.48
W 200 x 135 x 31.3激光31.32101346.410.28
W 200 x 165 x 35.9激光35.92011656.210.210
W 200 x 165 x 41.7激光41.72051667.211.810
W 200 x 200 x 46.1激光46.12032037.21110
W 200 x 200 x 52激光522062047.912.610
W 200 x 200 x 59激光59.02102059.114.210
W 200 x 200 x 71激光71.021620610.217.410
W 200 x 200 x 86激光86.02222091320.610
W 200 x 200 x 100激光100.022921014.523.710
W 250 x 100 x 17.9激光17.92511014.85.38
W 250 x 100 x 22.3激光22.32541025.86.98
W 250 x 100 x 25.3激光25.32571026.18.48
W 250 x 100 x 28.4激光28.42601026.4108
W 250 x 145 x 32.7激光32.72581466.19.18
W 250 x 145 x 38.5激光38.52621476.611.28
W 250 x 145 x 44.8激光44.82661487.6138
W 250 x 200 x 49.1激光49.12472027.41113
W 250 x 200 x 58激光58252203813.513
W 250 x 200 x 67激光672572048.915.713
W 250 x 250 x 73激光73.02532548.614.213
W 250 x 250 x 80激光80.02562559.415.613
W 250 x 250 x 89激光89.026025610.717.313
W 250 x 250 x 101激光101.026425711.919.613
W 250 x 250 x 115激光115.026925913.522.113
W 250 x 250 x 131激光13127526115.425.113
W 250 x 250 x 149激光14928226317.328.413
W 250 x 250 x 167激光16728926519.231.813
W 310 x 100 x 21.0激光213031015.15.78
W 310 x 100 x 23.8激光23.83051015.66.78
W 310 x 100 x 28.3激光28.330910268.98
W 310 x 100 x 32.7激光32.73131026.610.88
W 310 x 165 x 38.7激光38.73101655.89.78
W 310 x 165 x 44.5激光44.53131666.611.28
W 310 x 165 x 52激光52.03171677.613.28
W 310 x 200 x 60激光603032037.513.115
W 310 x 200 x 67激光673062048.514.615
W 310 x 200 x 74激光74.03102059.416.315
W 310 x 250 x 79激光79.03062548.814.615
W 310 x 250 x 86激光86.03102549.116.315
W 310 x 310 x 97激光97.03083059.915.415
W 310 x 310 x 107激光107.031130610.91715
W 310 x 310 x 117激光117.031430711.918.715
W 310 x 310 x 129激光129.031830813.120.615
W 310 x 310 x 143激光1433233091422.915
W 310 x 310 x 158激光15832731015.525.115
W 310 x 310 x 179激光1793333131828.115
W 310 x 310 x 202激光20234131520.131.815
W 310 x 310 x 226激光22634831722.135.615
W 310 x 310 x 253激光25335631924.439.615
W 310 x 310 x 283激光28336532226.944.115
W 310 x 310 x 313激光3133743253048.315
W 310 x 310 x 342激光34238232832.652.615
W 360 x 130 x 32.9激光32.93491275.88.510
W 360 x 130 x 39.0激光393531286.510.710
W 360 x 170 x 44激光44.63521716.99.810
W 360 x 170 x 51激光513551717.211.610
W 360 x 170 x 57.8激光58.03581727.913.110
W 360 x 200 x 64激光64.03472037.713.515
W 360 x 200 x 72激光72.03502048.615.115
W 360 x 200 x 79激光79.03542059.416.815
W 360 x 250 x 91激光91.03532549.516.415
W 360 x 250 x 101激光101.035725510.518.315
W 360 x 250 x 110激光110.036025611.419.915
W 360 x 250 x 122激光122.03632571321.715
W 360 x 370 x 134激光13435636911.21815
W 360 x 370 x 147激光14736037012.319.815
W 360 x 370 x 162激光16236437113.321.815
W 360 x 370 x 179激光1793683731523.915
W 360 x 370 x 196激光19637237416.426.215
W 360 x 410 x 216激光21637539417.327.715
W 360 x 410 x 237激光23738039518.930.215
W 360 x 410 x 262激光26238739821.133.315
W 360 x 410 x 287激光28739339922.636.615
W 360 x 410 x 314激光31439940124.939.615
W 360 x 410 x 347激光34740740427.243.715
W 360 x 410 x 382激光38241640629.84815
W 360 x 410 x 421激光42142540932.852.615
W 360 x 410 x 463激光46343541235.857.415
W 360 x 410 x 509激光50944641639.162.715
W 360 x 410 x 551激光5514554184267.615
W 360 x 410 x 592激光5924654214572.315
W 360 x 410 x 634激光63447442447.677.115
W 360 x 410 x 677激光67748342851.281.515
W 360 x 410 x 744激光74449843255.688.915
W 360 x 410 x 818激光81851443760.59715
W 360 x 410 x 900激光90053144265.910615
W 360 x 410 x 990激光99055044871.911515
W 360 x 410 x 1086激光10865694547812515
W 410 x 140 x 38.8激光38.83991406.48.810
W 410 x 140 x 46.1激光46.1403140711.210
W 410 x 180 x 53激光534031777.510.910
W 410 x 180 x 60激光60.04071787.712.810
W 410 x 180 x 67激光67.04101798.814.410
W 410 x 180 x 75激光75.04131809.71610
W 410 x 180 x 85激光85.041718110.918.210
W 410 x 260 x 100激光100.04152601016.910
W 410 x 260 x 114激光114.042026111.619.310
W 410 x 260 x 132激光132.042526313.322.210
W 410 x 260 x 149激光14943126514.92510
W 460 x 150 x 52激光524501527.610.810
W 460 x 150 x 60激光60455153813.310
W 460 x 150 x 68激光684591549.115.410
W 460 x 190 x 74激光74.0457190914.510
W 460 x 190 x 82激光82.04601919.91610
W 460 x 190 x 89激光89.046319210.517.710
W 460 x 190 x 97激光97.046619311.41910
W 460 x 190 x 106激光106.046919412.620.610
W 460 x 280 x 113激光113.046328010.817.310
W 460 x 280 x 128激光128.046728212.219.610
W 460 x 280 x 144激光144.047228313.622.110
W 460 x 280 x 158激光158.04762841523.910
W 460 x 280 x 177激光17748228616.626.910
W 460 x 280 x 193激光1934892831730.510
W 460 x 280 x 213激光21349528518.533.510
W 460 x 280 x 235激光23550128720.636.610
W 460 x 280 x 260激光26050928922.640.410
W 530 x 165 x 66激光665251658.911.413
W 530 x 165 x 74激光745291669.713.613
W 530 x 165 x 85激光8553516610.316.513
W 530 x 210 x 92激光9253320910.215.613
W 530 x 210 x 101激光10153721010.917.413
W 530 x 210 x 109激光109.053921111.618.813
W 530 x 210 x 123激光123.054421213.121.213
W 530 x 210 x 138激光138.054921414.723.613
W 530 x 315 x 150激光150.054331212.720.313
W 530 x 315 x 165激光1655463131422.213
W 530 x 315 x 182激光18255131515.224.413
W 530 x 315 x 196激光19655431616.526.313
W 530 x 315 x 219激光21956031818.329.213
W 530 x 315 x 248激光2485713151934.513
W 530 x 315 x 272激光27257731821.137.613
W 530 x 315 x 300激光30058531923.141.413
W 610 x 180 x 82激光825991781012.813
W 610 x 180 x 92激光9260317910.91513
W 610 x 230 x 101激光10160322810.514.913
W 610 x 230 x 113激光11360822811.217.313
W 610 x 230 x 125激光12561222911.919.613
W 610 x 230 x 140激光140.061723013.122.213
W 610 x 230 x 153激光153.06232291424.913
W 610 x 325 x 155激光15561132412.71913
W 610 x 325 x 174激光1746163251421.613
W 610 x 325 x 195激光19562232715.424.413
W 610 x 325 x 217激光21762832816.527.713
W 610 x 325 x 241激光24163532917.13113
W 610 x 325 x 262激光262641327193413
W 610 x 325 x 285激光28564732920.637.113
W 610 x 325 x 341激光34166133324.443.913
W 610 x 325 x 415激光41567933829.553.113
W 610 x 325 x 455激光4556893403257.913
W 610 x 325 x 498激光49869934335.16313
W 610 x 325 x 551激光55171134738.669.113
W 690 x 250 x 125激光12567825311.716.315
W 690 x 250 x 140激光14068425412.418.915
W 690 x 250 x 152激光15268825413.121.115
W 690 x 250 x 170激光17069325614.523.615
W 690 x 250 x 192激光19270225415.527.915
W 760 x 265 x 147激光14775326513.21717
W 760 x 265 x 161激光16175826613.819.317
W 760 x 265 x 173激光17376226714.421.617
W 760 x 265 x 185激光18576626714.923.617
W 760 x 265 x 196激光19677026815.625.417
W 760 x 265 x 220激光22077926616.53017
W 840 x 295 x 176激光1768352921418.818
W 840 x 295 x 193激光19384029214.721.718
W 840 x 295 x 210激光21084629315.424.418
W 840 x 295 x 226激光22685129416.126.818
W 840 x 295 x 251激光251859292173118
W 920 x 310 x 201激光20190330415.220.119
W 920 x 310 x 223激光22391130415.923.919
W 920 x 310 x 238激光23891530516.525.919
W 920 x 310 x 253激光25391930617.327.919
W 920 x 310 x 271激光27192330718.43019
W 920 x 310 x 289激光28992730819.43219
W 920 x 310 x 313激光31393230921.134.519
W 920 x 420 x 345w激光34592741819.33219
W 920 x 420 x 368w激光36893141920.334.319
W 920 x 420 x 390w激光39093642021.336.619
W 920 x 420 x 420w激光42094342222.539.919
W 920 x 420 x 449w激光4499484232442.719
W 920 x 420 x 491w激光49195742225.94719
W 920 x 420 x 537w激光53796542528.451.119
W 920 x 420 x 588w激光5889764273155.919
W 920 x 420 x 656w激光65698743134.56219
W 920 x 420 x 725w激光72599943438.168.119
W 920 x 420 x 787w激光787101143740.973.919
W 920 x 420 x 970w激光97010434465089.919
W 1000 x 300 x 222激光2229703001621.130
W 1000 x 300 x 249激光24998030016.52630
W 1000 x 300 x 272激光27299030016.53130
W 1000 x 300 x 314激光314100030019.135.930
W 1000 x 300 x 350激光350100830221.14030
W 1000 x 300 x 393激光393101630324.443.930
W 1000 x 300 x 415激光4151020304264630
W 1000 x 300 x 438激光4381026305274930
W 1000 x 300 x 494激光4941036309315430
W 1000 x 300 x 584激光5841056314366430
W 1000 x 400 x 296激光29698240016.527.130
W 1000 x 400 x 321激光32199040016.53130
W 1000 x 400 x 371激光37110004001936.130
W 1000 x 400 x 412激光412100840221.14030
W 1000 x 400 x 443激光443101240223.641.930
W 1000 x 400 x 483激光483102040425.44630
W 1000 x 400 x 539激光539103040728.451.130
W 1000 x 400 x 554激光554103240829.55230
W 1000 x 400 x 591激光59110404093155.930
W 1000 x 400 x 642激光6421048412346030
W 1000 x 400 x 748激光7481068417397030
W 1000 x 400 x 883激光883109242445.58230
W 1100 x 400 x 343激光3431090400183120
W 1100 x 400 x 390激光3901100400203620
W 1100 x 400 x 433激光4331108402224020
W 1100 x 400 x 499激光4991118405264520
訂購與送貨

煌港特鋼在交付過程中適用煌港交貨條件,並增加雙方將遵守適用的法律和法規要求,並不參與任何不道德商業行為。
煌港特鋼所生產的美國標準工字鋼的技術交貨條件符合相應要求。尺寸和公差按照相應鋼材標準定義,工程工作符合相應標準。
美國標準工字鋼配備捆紮標籤和煌港特鋼的產品標籤,以實現全面的追溯和識別。
根據相應鋼材標準,將提供對應型材料證書。
